Maxi Workstation (8xLFF/SAS-HBA) Base with AMD Threadripper 9960X 24-Core 4.20 GHz, 32 GB DDR5 RAM, 1 TB SSD
Your choice
- Maxi Workstation (8xLFF/SAS-HBA) Base with AMD Threadripper 9960X 24-Core 4.20 GHz, 32 GB DDR5 RAM, 1 TB SSD
Price with upgrades:
- € 3,781.50
Description
| Description: | Maxi Workstation (LFF chassis) |

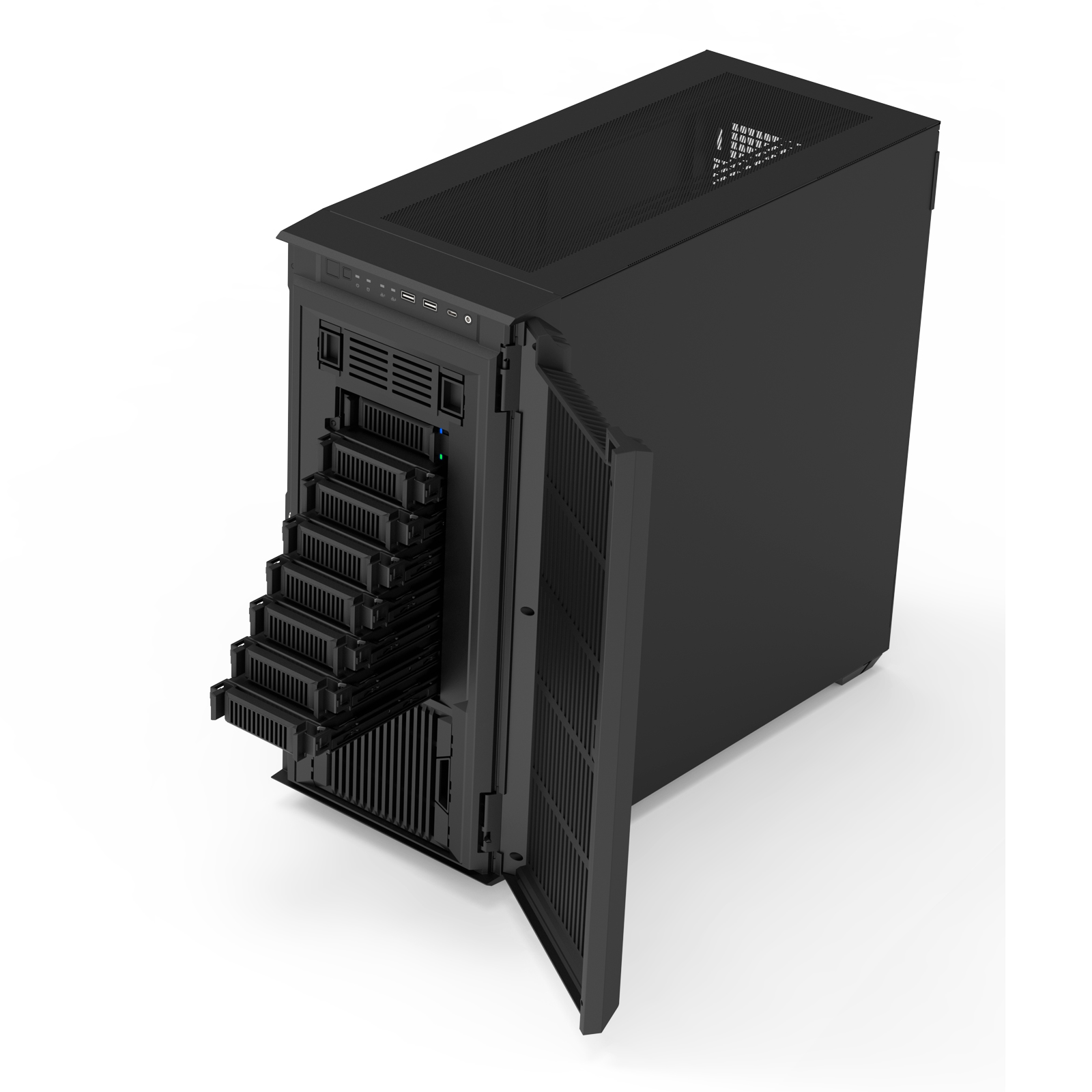

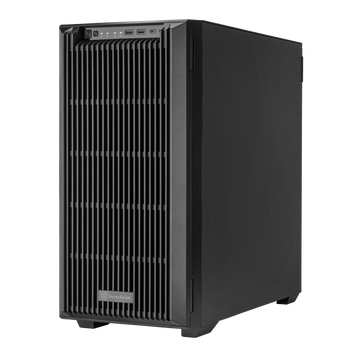

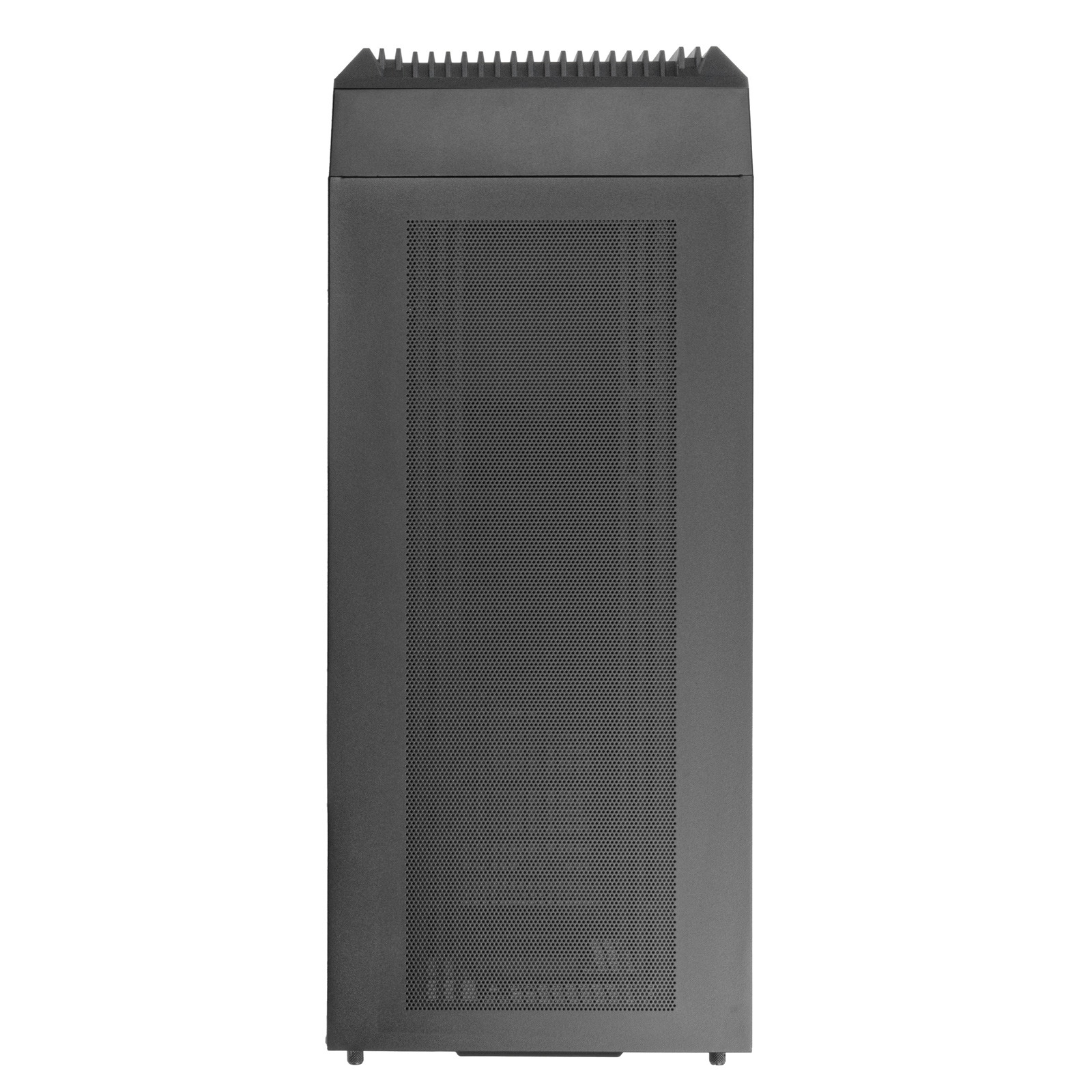

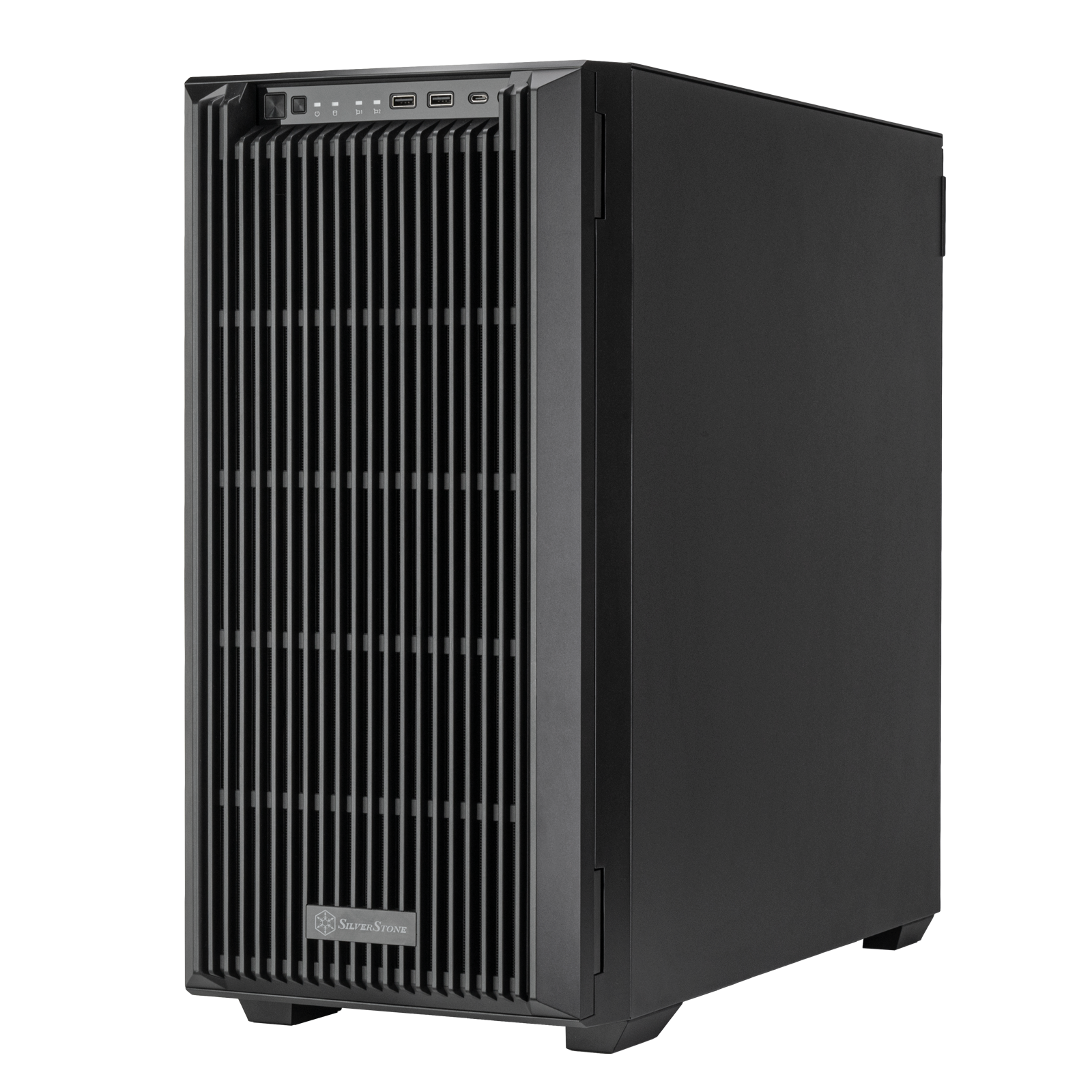

| Chassis: | SilverStone CS383 Tower chassis with 8x 3.5" LFF Hot-Plug Bays |
| System board: | GIGABYTE TRX50 AI TOP-2B |
| Processor: | 1x AMD Threadripper 9960X 24-Core 4.20 GHz (48-Threads, 5.40 GHz Turbo, 128 MB Cache) |
| Memory: | 32 GB DDR5 RAM (1x 32 GB modules installed, upgradable, max. 8x modules possible) |
| Storage controller (Adapter): | Broadcom HBA 9500-8i Host Bus Adapter (12G SAS, HBA-Mode) |
| Storage controller (Embedded): | AMD TRX50 (6G SATA, AHCI or RAID-Mode) |

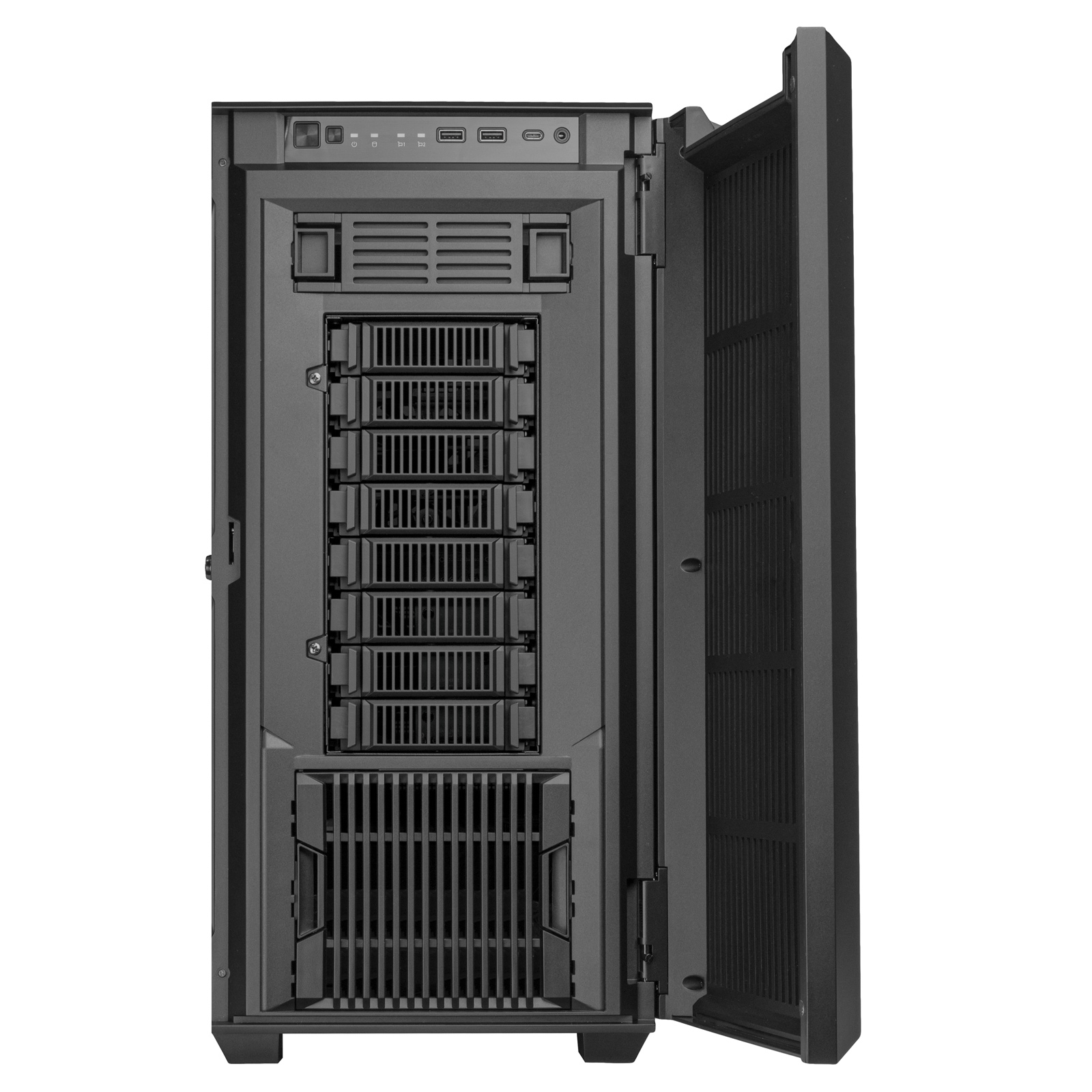

| Front LFF-Box#1: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front LFF-Box#2: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front 5.25" bay: | free, max. 1x 5.25" device possible |
| Internal SFF holder: | 1x 3.5" LFF + 2x 2.5" SSF or 4x 2.5" SFF Non-Hot Plug holder - with cabling to embedded controller |
| Installed disks: | 1x 1 TB PCIe Gen4 SSD M.2 2280 Boot Drive |
| Power supply: | 1x 1200 Watt ATX power supply |
| Cooling: | 1x standard 140mm chassis fan |
| 3x standard 120mm chassis fan | |
| 2x standard 92mm backplane fans | |
| Riser Slot#1: | 1x PCIe Gen5 x 16 - (full height, up to 340mm length) |
| Riser Slot#2: | not occupied |
| Riser Slot#3: | 1x PCIe Gen5 x 16 - (full height, up to 340mm length) |
| Riser Slot#4: | not occupied |
| Riser Slot#5: | 1x PCIe Gen5 x 16 - (full height, up to 340mm length) |
| Riser Slot#6: | not occupied |
| Riser Slot#7: | 1x PCIe Gen5 x 16 - (full height, up to 340mm length) |
| Riser Slot#8: | not occupied |
| M.2 Slot: | 3x M.2 2280 (NVMe Gen5 x4) |
| Connectivity (Standard): | 2x 10G RJ45 network ports |
| 1x displayport | |
| 2x USB Type-C 4.0 external | |
| 6x USB Type-A 3.2 Gen2 external | |
| 4x 7-Pin 6G SATA | |
| Audio (line in + out) | |
| WiFi | |
| Dimensions: | Tower x 5.5HE x 588mm depth |
| Remote management: | - |
| Other equipment: | 3x dust filters (front, top, PSU) |
| Condition: | chassis, motherboard & CPU are new, remaining components are used in nearly new condition |
| Included in delivery: | fully functional server without accessories such as blind covers or software |
| Every server is being tested immediately before shipment | |
