Midi Tower Server (8xLFF/SAS-HBA) Base with Intel Xeon 6369P 8-Core 3.30 GHz, 32 GB DDR5 RAM, 960 GB SATA SSD
Intel Xeon 6
Item 1 of 8
€ 2,042.01
*
* Excl. VAT excl.
ShippingThis item is currently out of stock! Your options:
We have thousands of pre-configured servers, accessories, and spare parts in stock, but unfortunately not this one! We can still help:
-
Search for an alternative among all immediately available items:
Search -
Or take a direct look at one of the categories:
Server - Special Editions - Midi Server - Intel-based - Does it have to be this exact item? We can look for it for you or build your custom device: Go to contact form
Your choice
- Midi Tower Server (8xLFF/SAS-HBA) Base with Intel Xeon 6369P 8-Core 3.30 GHz, 32 GB DDR5 RAM, 960 GB SATA SSD
Price with upgrades:
- € 2,042.01
Description
| Description: | Midi Tower Server (LFF chassis) |

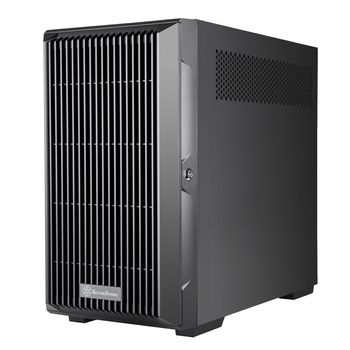

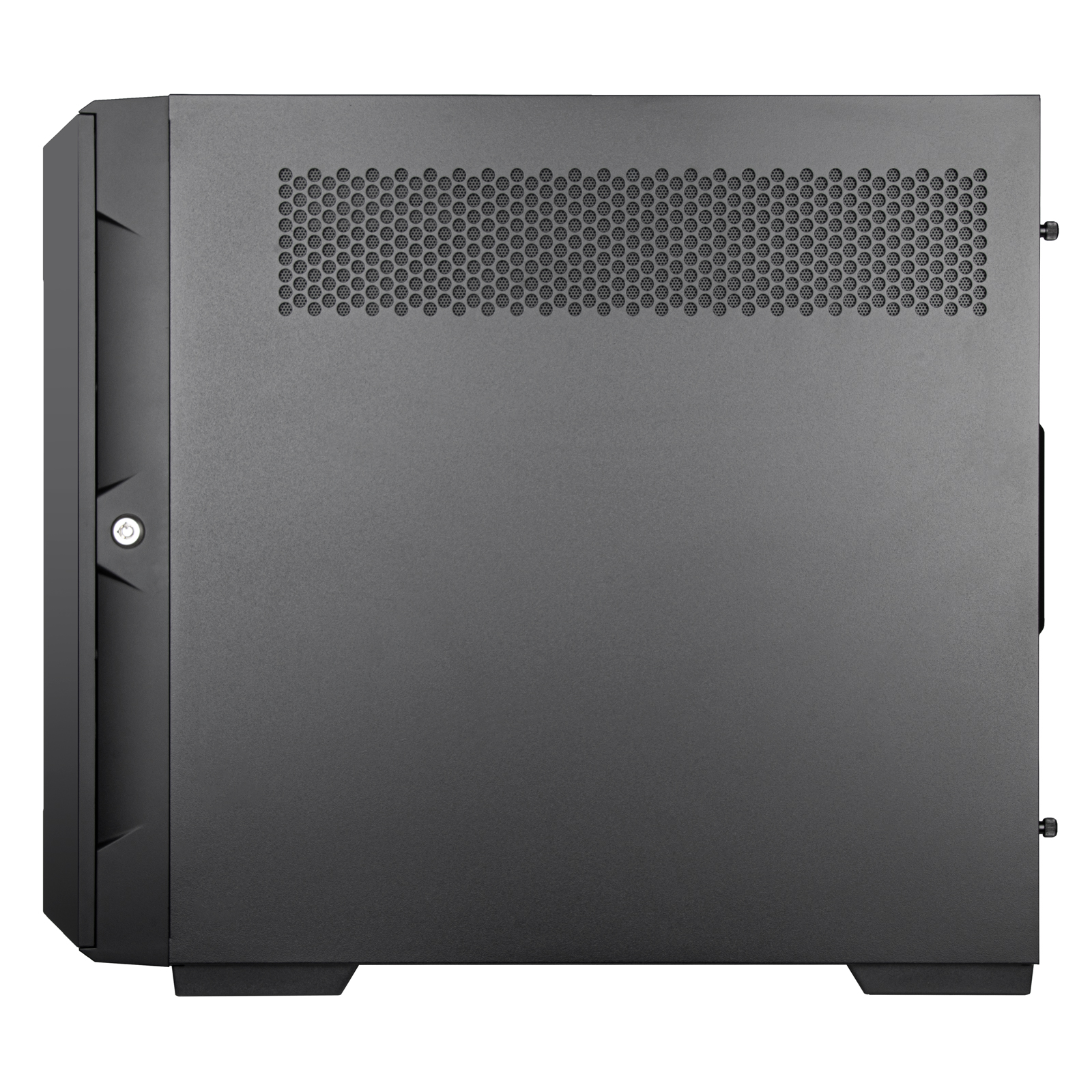

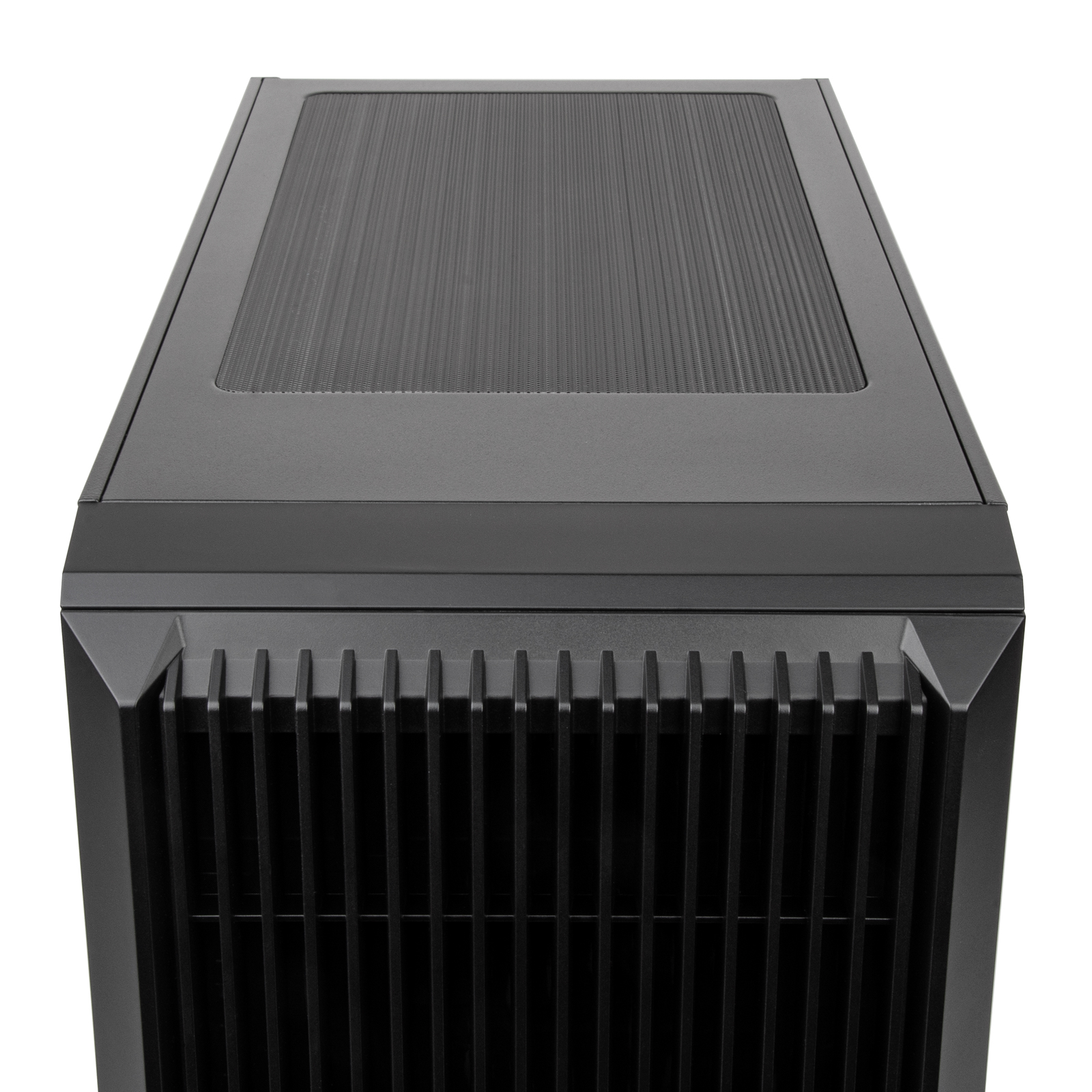

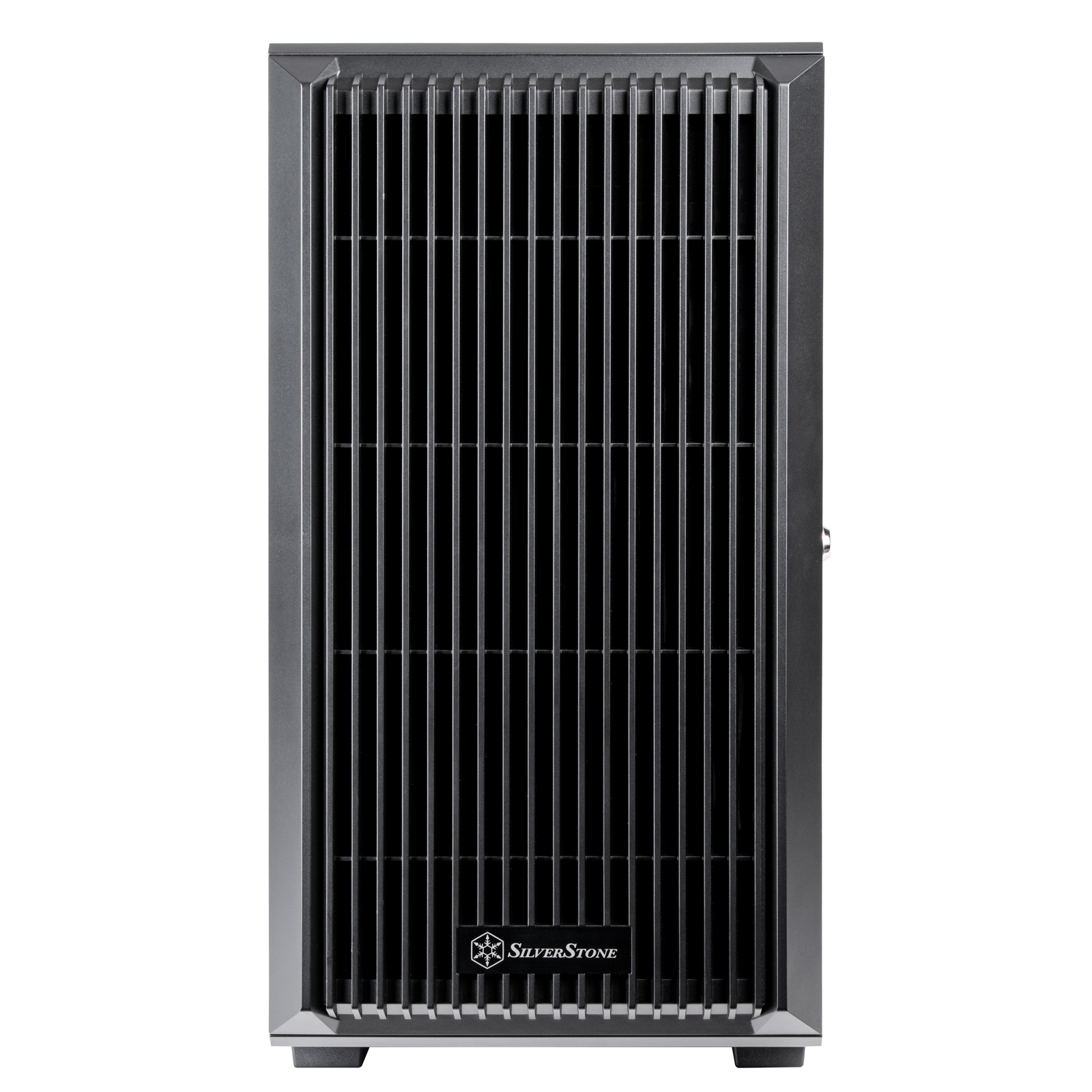

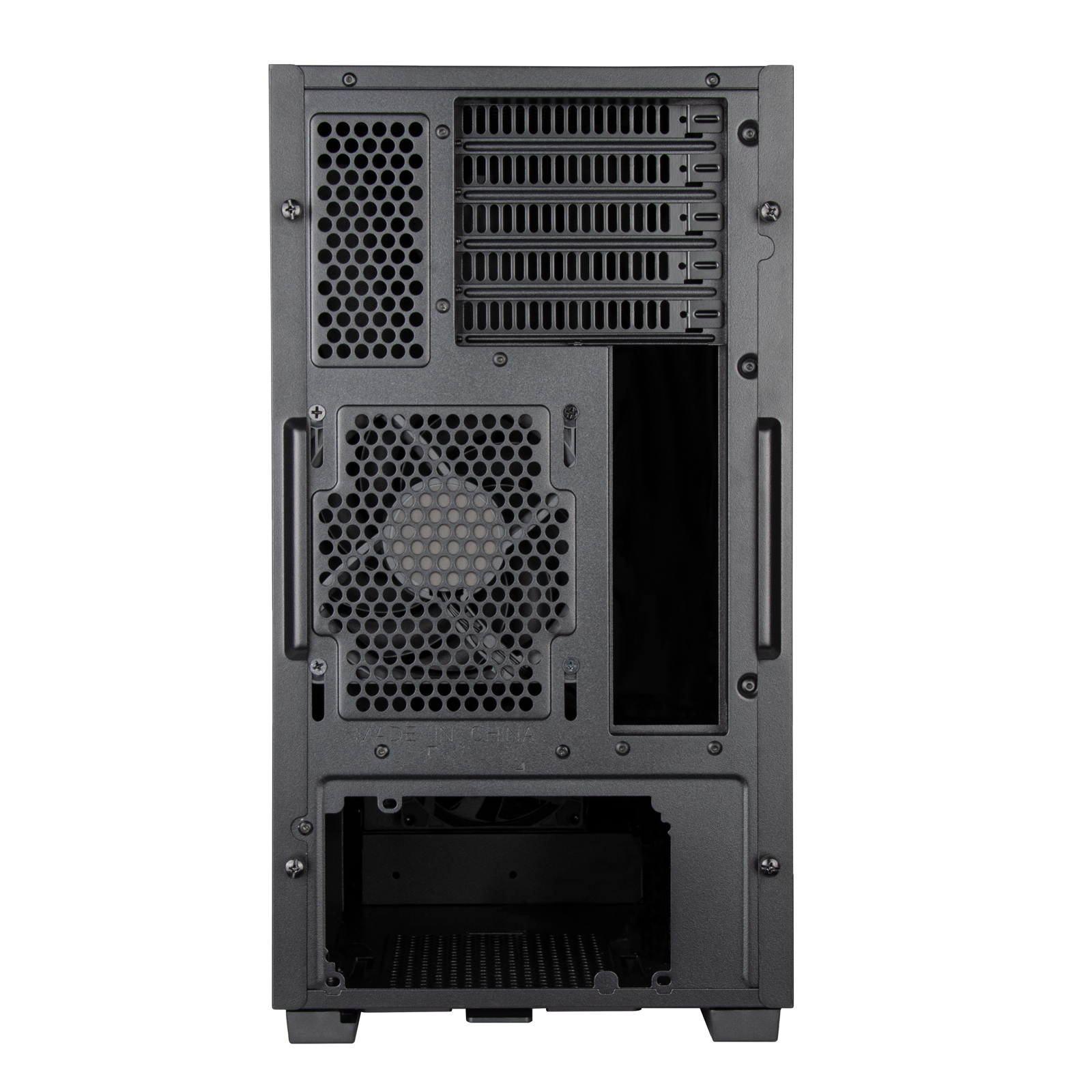

| Chassis: | SilverStone CS382 Tower chassis with 8x 3.5" LFF Hot-Plug Bays |
| System board: | Supermicro X13SCL-F |
| Processor: | 1x Intel Xeon 6369P 8-Core 3.30 GHz (16-Threads, 5.70 GHz Turbo, 24 MB Cache) |
| Memory: | 32 GB DDR5 RAM (1x 32 GB modules installed, upgradable, max. 4x modules possible) |
| Storage controller (Adapter): | Broadcom HBA 9500-8i Host Bus Adapter (12G SAS, HBA-Mode) |
| Storage controller (Embedded): | Intel C262 (6G SATA, AHCI or RAID-Mode) |
| Front LFF-Box#1: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front LFF-Box#2: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front 5.25" bay: | free, max. 1x 5.25" device possible |
| Internal SFF holder: | 2x Single Non-Hot Plug 2.5" SFF holder - with cabling to embedded controller |
| Installed disks: | 1x 960 GB 6G SATA Read Intensive 2.5" SFF SSD |
| Power supply: | 1x 550 Watt ATX power supply |
| Cooling: | 2x standard 120mm chassis fan - max. 3x possible |
| 2x standard 92mm backplane fans | |
| Riser Slot#1: | 1x PCIe Gen5 x8 - (full height, up to 369mm length) |
| Riser Slot#2: | 1x PCIe Gen5 x16 (x8 electrical) - (full height, up to 369mm length) |
| Riser Slot#3: | 1x PCIe Gen4 x8 (x4 electrical) - (full height, up to 369mm length - shorter if 5.25" bay used) |
| Riser Slot#4: | 1x PCIe Gen4 x8 (x4 electrical) - (full height, up to 369mm length - shorter if 5.25" bay used) |
| Riser Slot#5: | not occupied |
| M.2 Slot: | 1x M.2 2280/22110 (NVMe Gen4 x4) |
| Connectivity (Standard): | 1x 1G RJ45 remote port |
| 2x 1G RJ45 network ports | |
| 1x VGA | |
| 2x USB Type-C 3.2 Gen1 external | |
| 2x USB Type-A 2.0 external | |
| 8x 7-Pin 6G SATA | |
| 1x serial port (RS232) | |
| Dimensions: | Tower x 5HE x 451mm depth |
| Remote management: | IPMI Remote Management |
| Other equipment: | - |
| Condition: | chassis & motherboard are new, remaining components are used in nearly new condition |
| Included in delivery: | fully functional server without accessories such as blind covers or software |
| Every server is being tested immediately before shipment | |
Questions about this item?
We're happy to help! Contact us and we will get back to you as soon as possible!
Create new ticket
Compatible operating systems:
Canonical Ubuntu 22.04.3 LTS
Oracle Linux/UEK 9.2
Red Hat Enterprise Linux 8.8
Red Hat Enterprise Linux 9.2
SUSE Linux Enterprise Server 15 SP5
VMware ESXi 8.0 U1+
Notice: This is only a quick overview of the most important operating systems. For further support or specific information, please check the manufacturer's page of the hardware or the software provider.
