Midi Tower Server (8xLFF/SAS-RAID) Base with Intel Xeon E-2336 6-Core 2.90 GHz, 16 GB DDR4 RAM, 960 GB SATA SSD
Your choice
- Midi Tower Server (8xLFF/SAS-RAID) Base with Intel Xeon E-2336 6-Core 2.90 GHz, 16 GB DDR4 RAM, 960 GB SATA SSD
Price with upgrades:
- € 1,428.56
Description
| Description: | Midi Tower Server (LFF chassis) |

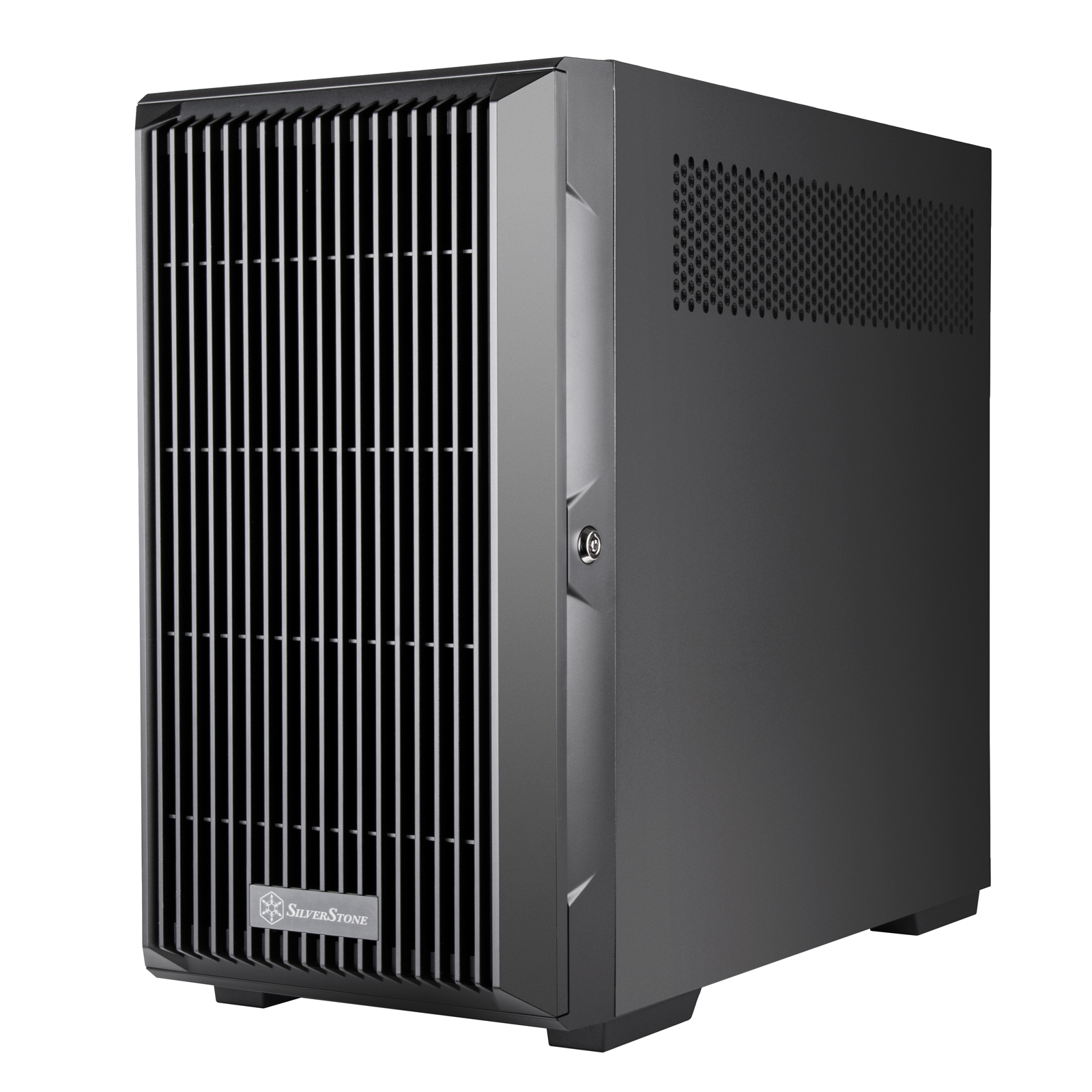

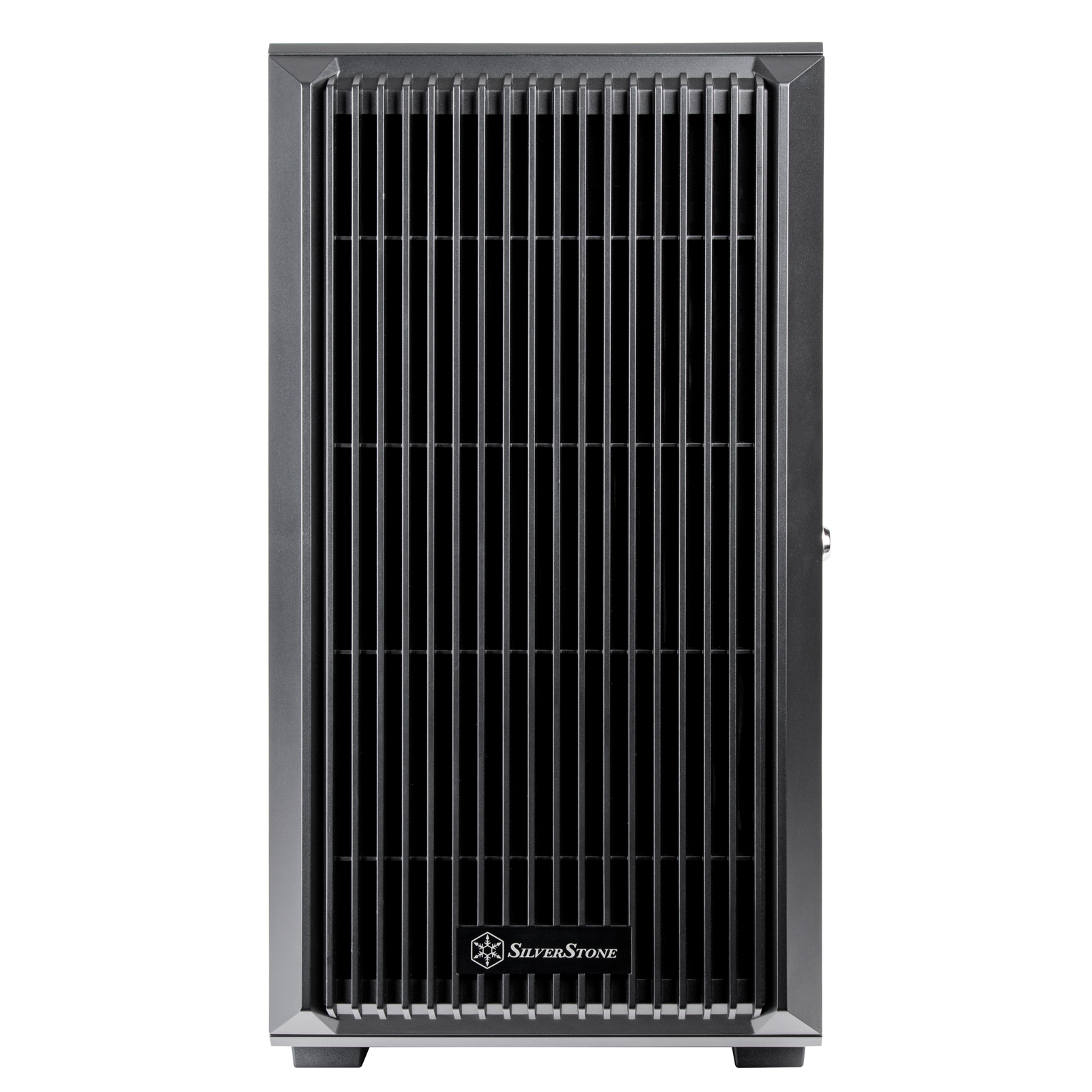

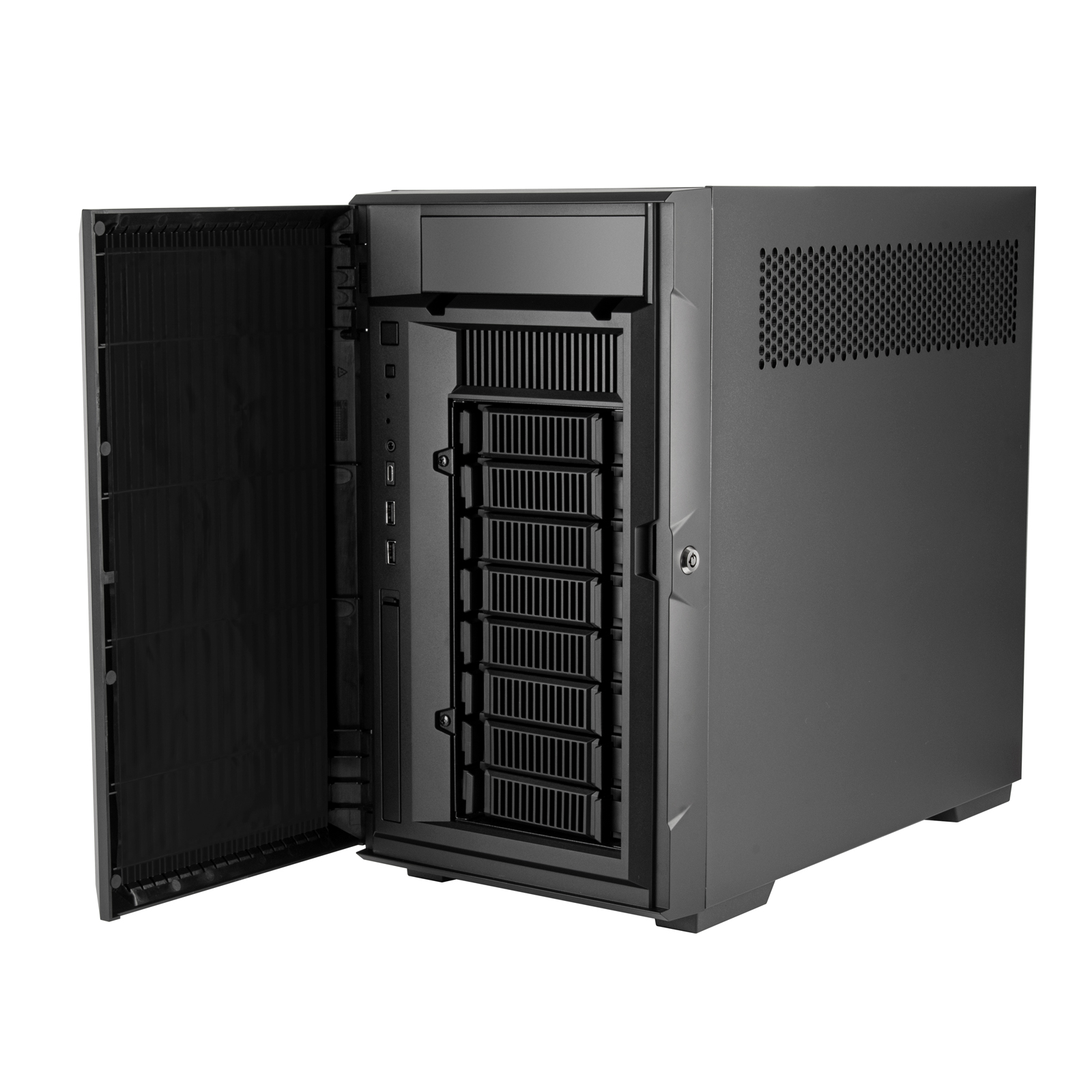

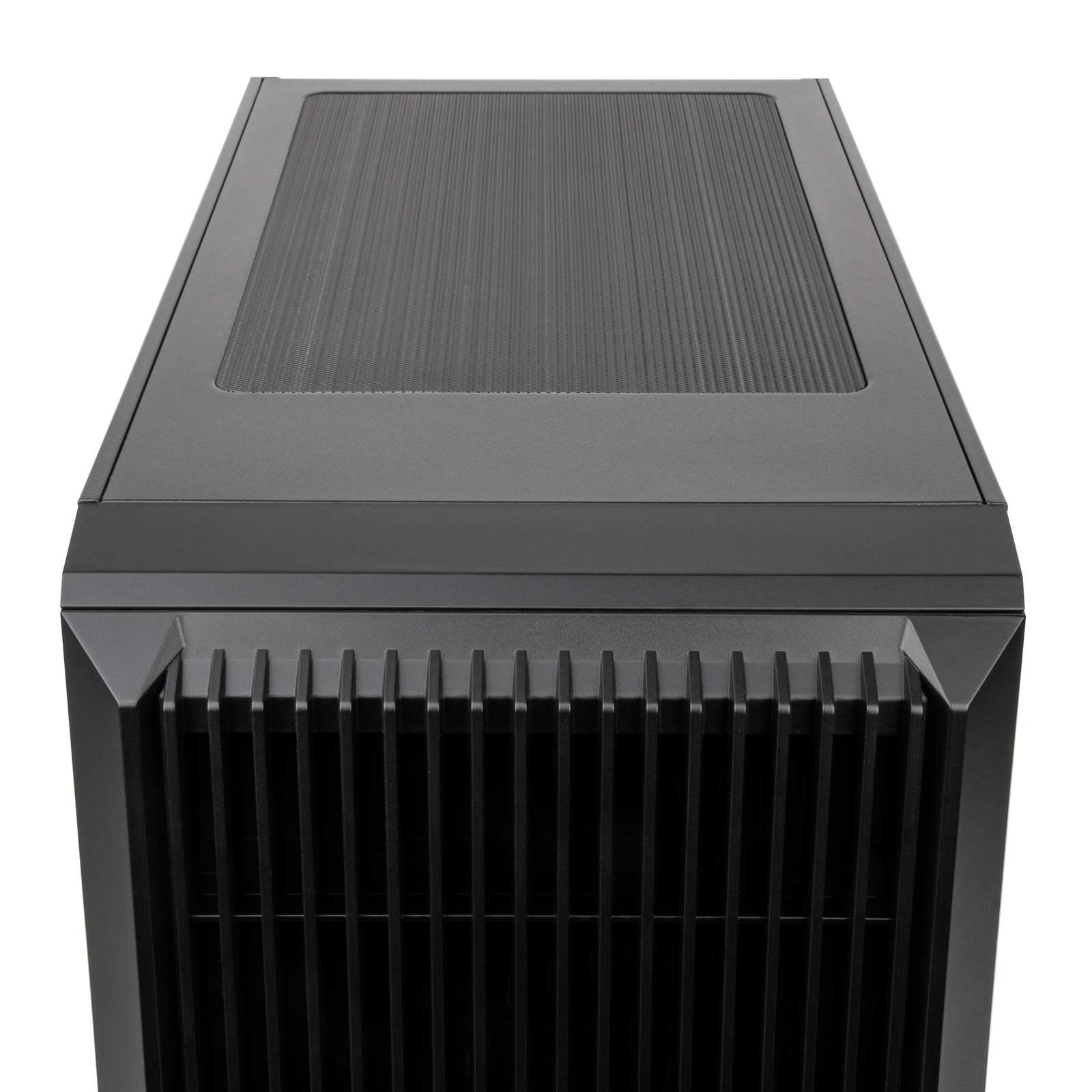

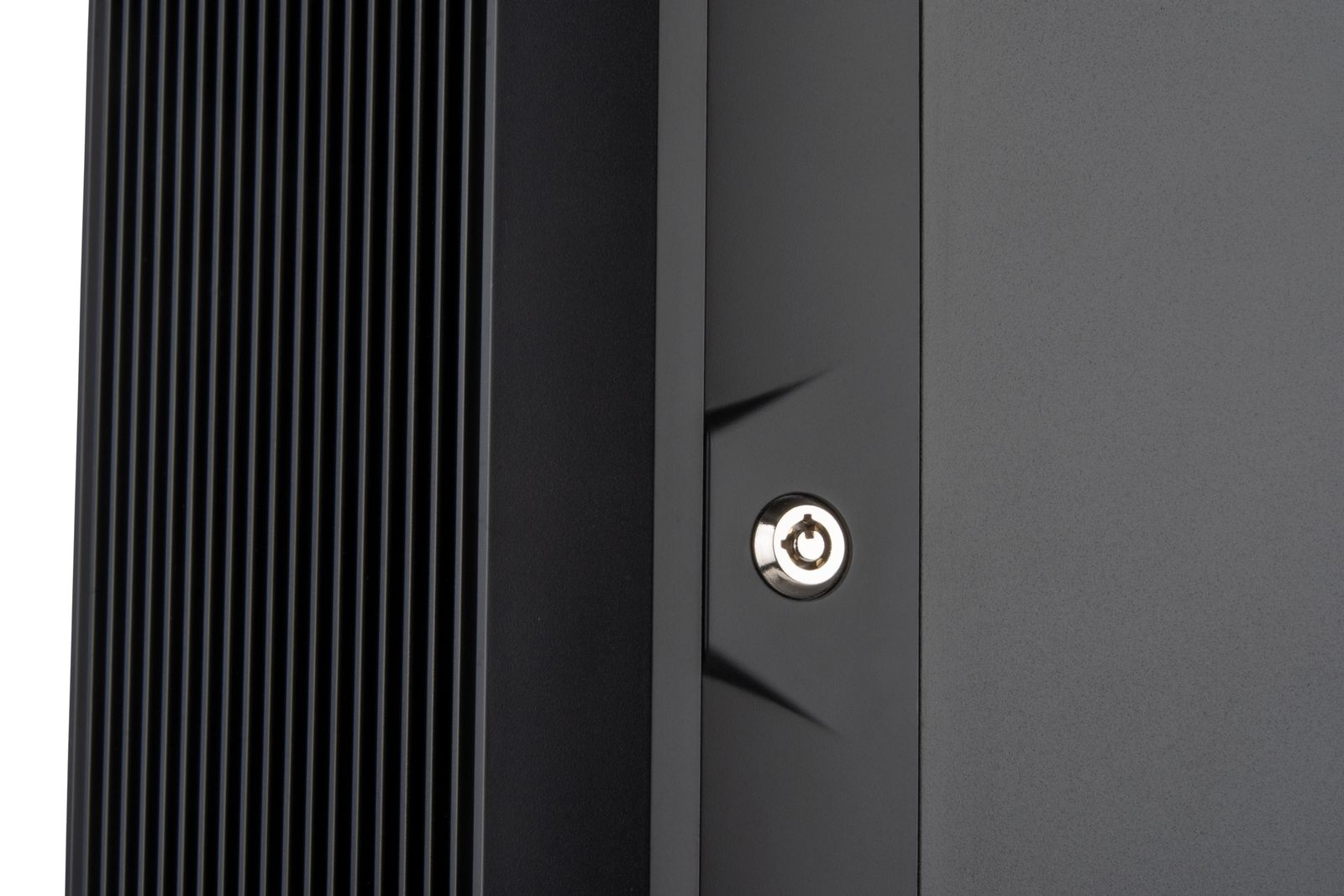

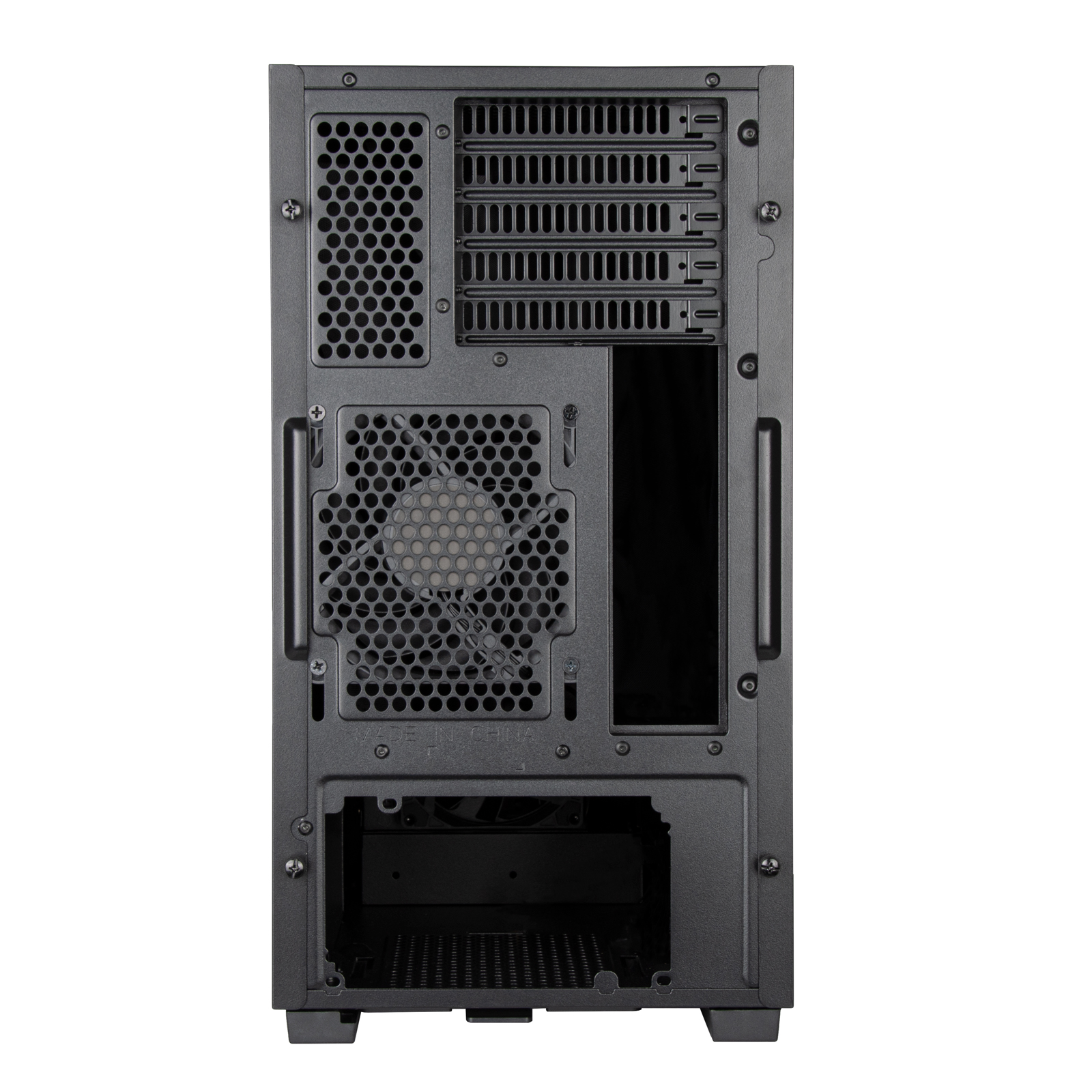

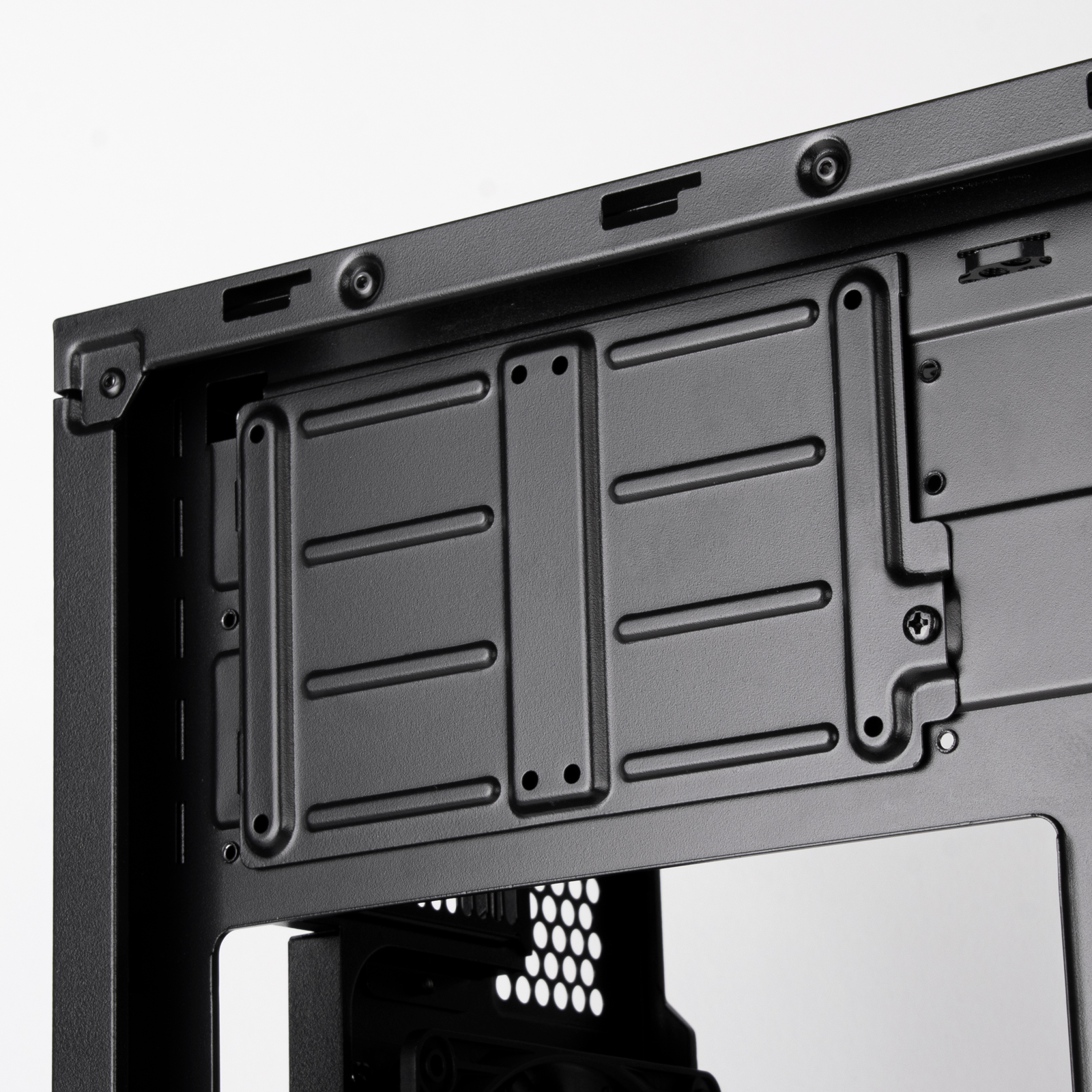

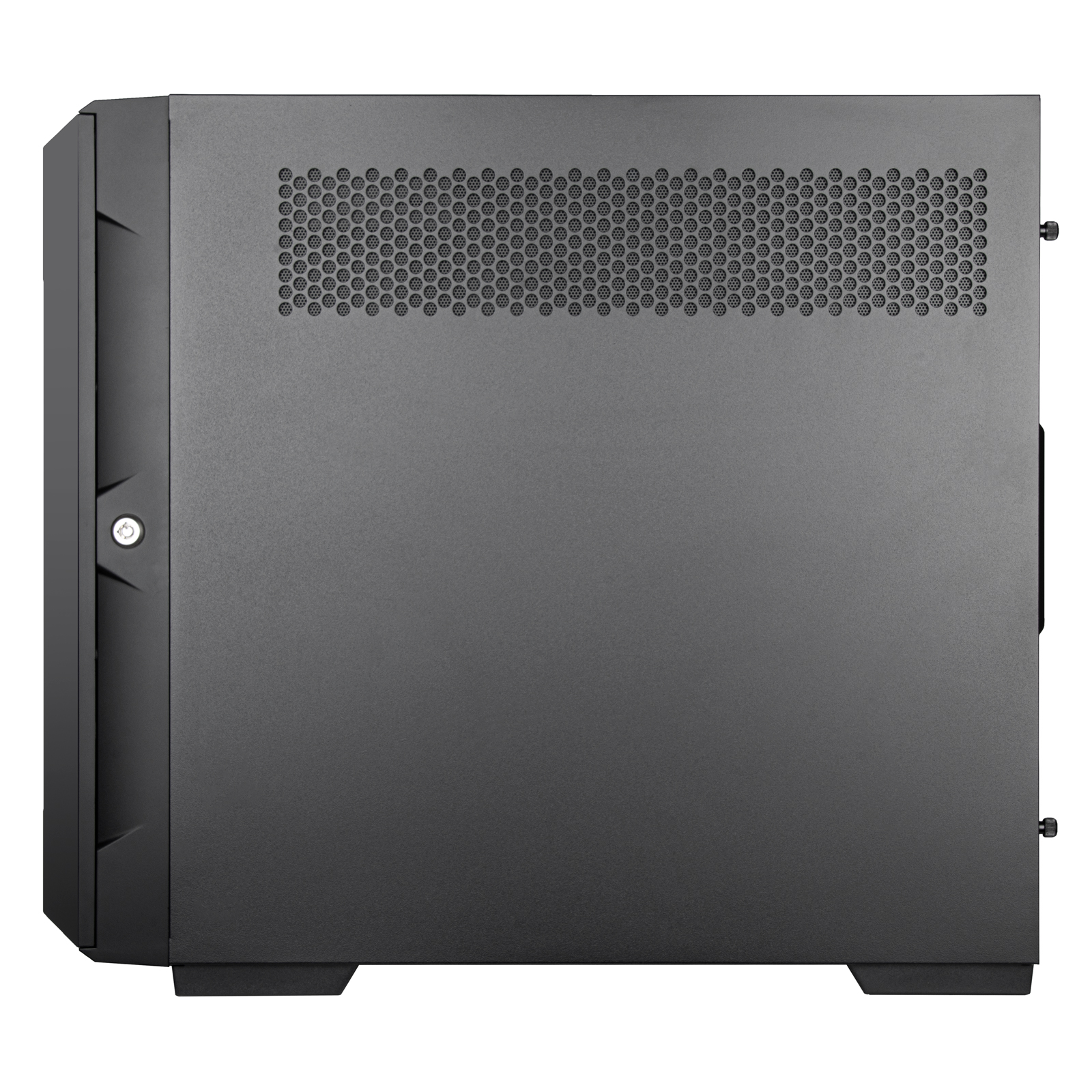

| Chassis: | SilverStone CS382 Tower chassis with 8x 3.5" LFF Hot-Plug Bays |
| System board: | Supermicro X12STL-F |
| Processor: | 1x Intel Xeon E-2336 6-Core 2.80 GHz (12-Threads, 4.80 GHz Turbo, 12 MB Cache) |
| Memory: | 16 GB DDR4 RAM (1x 16 GB modules installed, upgradable, max. 4x modules possible) |
| Storage controller (Adapter): | Broadcom MegaRAID 9540-8i Adapter (12G SAS, RAID-Mode) |
| Storage controller (Embedded): | Intel C252 (6G SATA, AHCI or RAID-Mode) |
| Front LFF-Box#1: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front LFF-Box#2: | 1x standard 4-bay Hot Plug 3.5" LFF cage (12G SAS Single-Port) - with cabling to adapter controller |
| Front 5.25" bay: | free, max. 1x 5.25" device possible |
| Internal SFF holder: | 2x Single Non-Hot Plug 2.5" SFF holder - with cabling to embedded controller |
| Installed disks: | 1x 960 GB 6G SATA Read Intensive 2.5" SFF SSD |
| Power supply: | 1x 550 Watt ATX power supply |
| Cooling: | 2x standard 120mm chassis fan - max. 3x possible |
| 2x standard 92mm backplane fans | |
| Riser Slot#1: | 1x PCIe Gen4 x8 (x4 electrical) - (full height, up to 369mm length) |
| Riser Slot#2: | 1x PCIe Gen4 x16 (x8 electrical) - (full height, up to 369mm length) |
| Riser Slot#3: | 1x PCIe Gen4 x8 - (full height, up to 369mm length - shorter if 5.25" bay used) |
| Riser Slot#4: | 1x PCIe Gen3 x4 (x2 electrical) - (full height, up to 369mm length - shorter if 5.25" bay used) |
| Riser Slot#5: | 1x PCIe slot possible (full height, up to 369mm length - shorter if 5.25" bay used) |
| M.2 Slot: | 1x M.2 2280/22110 (NVMe Gen3 x4) |
| Connectivity (Standard): | 1x 1G RJ45 remote port |
| 2x 1G RJ45 network ports | |
| 1x VGA | |
| 2x USB Type-A 3.2 Gen1 external | |
| 2x USB Type-A 2.0 external | |
| 1x USB Type-A 3.2 Gen1 internal | |
| 6x 7-Pin 6G SATA | |
| 1x serial port (RS232) | |
| Dimensions: | Tower x 5HE x 451mm depth |
| Remote management: | IPMI Remote Management |
| Other equipment: | - |
| Condition: | chassis & motherboard are new, remaining components are used in nearly new condition |
| Included in delivery: | fully functional server without accessories such as blind covers or software |
| Every server is being tested immediately before shipment | |
Upgrade now!
Choose your upgrades now and get more power faster & cheaper. Your upgrades will be built in and checked prior shipping by our technicians!
Questions about this item?
We're happy to help! Contact us and we will get back to you as soon as possible!
Create new ticket
Compatible operating systems:
Canonical Ubuntu 18.04 LTS
Canonical Ubuntu 20.04 LTS
Red Hat Enterprise Linux 8.3
SUSE Linux Enterprise Server 15 SP3
Notice: This is only a quick overview of the most important operating systems. For further support or specific information, please check the manufacturer's page of the hardware or the software provider.
